Productdetails:
|
Screen Size: | 17.3" Diagonal | Resolution: | 1920 × 1080 (Full HD) |
---|---|---|---|
Brightness: | 800 cd/m² (Typical) | Contrast Ratio: | 600:1 (Typical) |
Response Time: | 40 ms (Typical On/Off) | Interface: | Dual-Channel LVDS |
Operating Temp.: | 0°C to +70°C (Industrial Grade) | Storage Temp.: | -20℃ to +70℃ |
Power Consumption: | 31 W (Typical) | Color Support: | 16.7M Colors (RGB 6-bit + HiFRC) |
Warranty: | 2 Years (Extended Coverage for Industrial Use) | Compliance: | RoHS, REACH, Halogen-Free |
Markeren: | FHD TFT LCD-module voor industrieel gebruik,17.3 FHD TFT LCD-module,800 Nits FHD TFT LCD-module |
Hoge helderheid 17,3" FHD TFT LCD module - SFTO1730RX-7332AN
De SFTO1730RX-7332AN is een hoogwaardige 17,3" Full HD (1920 x 1080) TFT LCD-module ontworpen voor industriële, commerciële en buitentoepassingen.Deze module zorgt voor een goed zicht, zelfs bij direct zonlicht., waardoor het ideaal is voor omgevingen met veel omgevingslicht.
Technische specificaties
Parameter | Waarde |
---|---|
Schermgrootte | 17.3" diagonaal (17.25") |
Actief gebied | 3810,888 mm (H) x 214,812 mm (V) |
Pixel Pitch | 0.1989 mm (per triade) |
Oppervlaktebehandeling | Hard gecoat (3H), anti-glare |
Achterlichttype | LED met instelbare helderheid |
Inlaatspanning | 3.3 V (Logische/LCD-aandrijving) |
Inlaatspanning van achterlicht | 12 V gelijkstroom |
Gewicht | 1080 g (typisch) |
Afmetingen | 403 mm (H) x 240 mm (V) x 12,5 mm (D) |
We bieden technische ondersteuning, gecertificeerde documentatie en 24/7 klantenservice om uw project succesvol te maken.
Externe afmetingen
Specificatie van achterlicht
Pin nr. | Symbool | Beschrijving |
1 | VCC | Stroomtoevoerspanning +12V |
2 | VCC | Stroomtoevoerspanning +12V |
3 | Aan/uit | Signal voor het inzetten van uitgang |
4 | DIM | Dimmingsignaal |
5 | GND | Krachtgrond |
6 | GND | Krachtgrond |
Elektrische kenmerken
Parameter | Symbool | Waarden | Eenheid | ||||
Min. | Type | Maximaal | |||||
Inlaatspanning van stroomvoorziening | VBL | 10.8 | 12.0 | 13.8 | Vdc | ||
Stroomvoorziening Invoerstroom | IBL | - | 2.16 | 2.53 | Een | ||
Stroomvoorziening Invoerstroom (In-Rush) | In-rush |
- |
- |
(TBD) | Een | ||
Energieverbruik | PBL | - | 26 | 35 | W | ||
Inlaatspanning voor Controlesysteem Signalen |
Aan/uit | Op | V op | 2.5 | - | 5.5 | Vdc |
Af! | V uit | -Nee.3 | 0.0 | 0.5 | Vdc | ||
Helderheid aanpassen | ExtVBR-B | 30 | - | 100 | % | ||
30 | - | 100 | % | ||||
ExtVBR-B Frequentie | fPWM | 500 |
- |
1500 | Hz | ||
Niveaus van de impulsbelasting (PWM) | Hoog niveau | 2.5 | - | 5.5 | Vdc | ||
Laag niveau | 0.0 | - | 0.5 | Vdc | |||
Levensduur | 30,000 | 50,000 | Uren |
Interface pin definitie
Pin# | Signalenamen | Pin# | Signalenamen |
1 | RxOIN0- | 2 | RxOIN0+ |
3 | RxOIN1- | 4 | RxOIN1+ |
5 | RxOIN2- | 6 | RxOIN2+ |
7 | VSS | 8 | RxOCLKIN- |
9 | RxOCLKIN+ | 10 | RxOIN3- |
11 | RxOIN3+ | 12 | RxEIN0- |
13 | RxEIN0+ | 14 | VSS |
15 | RxEIN1- | 16 | RxEIN1+ |
17 | VSS | 18 | RxEIN2- |
19 | RxEIN2+ | 20 | RxECLKIN- |
21 | RxECLKIN+ | 22 | RxEIN3- |
23 | RxEIN3+ | 24 | VSS |
25 | VSS | 26 | VSS |
27 | VSS | 28 | VDD |
29 | VDD | 30 | VDD |
Artikel 1 | Eenheid | Voorwaarden | - Min. | Typus. | Max, ik ben er klaar voor. |
Zienhoek |
[graad] |
Horizontaal (rechts) CR = 10 (links) |
70 70 |
80 80 |
- |
Verticaal (omhoog) CR = 10 (naar beneden) |
50 70 |
60 80 |
- |
||
Uniformiteit van de lichtsterkte | [%] | 13 punten | 75 | 80 | - |
Optische responstijd |
[msec] |
Opkomend | - | 37 | 50 |
Val. | - | 3 | 10 | ||
Stijgen + dalen | - | 40 | 60 | ||
Kleur / kleurcoördinaten (CIE 1931) |
Rode x | 0.59 | 0.64 | 0.69 | |
Rood y | 0.3 | 0.35 | 0.4 | ||
Groene x | 0.27 | 0.32 | 0.37 | ||
Groen y | 0.57 | 0.62 | 0.67 | ||
Blauwe x | 0.1 | 0.15 | 0.2 | ||
Blauw y | 0 | 0.05 | 0.1 | ||
Witte x | 0.25 | 0.30 | 0.35 | ||
Witte y | 0.26 | 0.31 | 0.36 | ||
Witte luminantie (bij LED=100mA) |
[cd/m2] | 700 | 800 |
- |
|
Contrastverhouding | 500 | 600 | - | ||
NTSC | % | 72 |

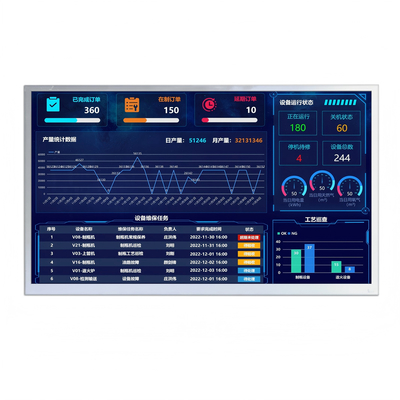

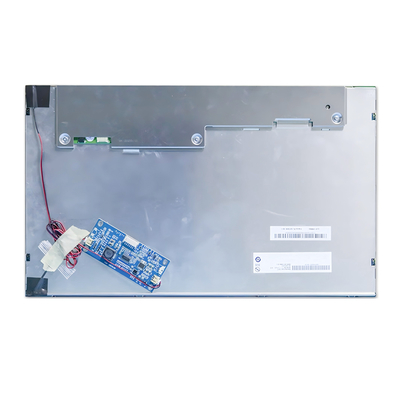

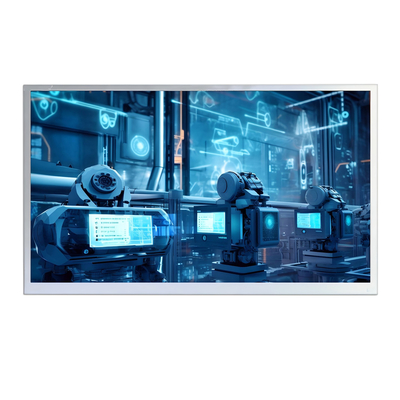

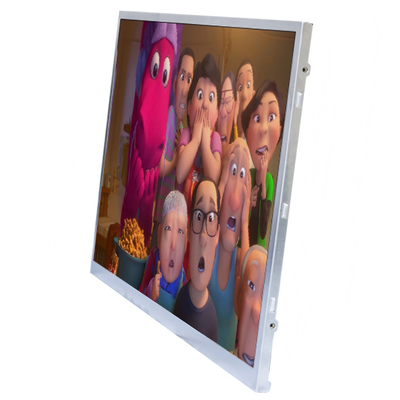

Productbeeld
