Productdetails:
|
| Modelnummer: | SFTO2700RX-7322AN | Schermgrootte: | 27 inch diagonaal |
|---|---|---|---|
| Resolutie: | 1920×1080 Pixels (RGB-streep) | Helderheid: | 1000 cd/m² |
| Opbergtemperatuur: | -20°C tot +60°C | Operatieve temperatuur.: | 0°C aan +50°C |
| Contrastverhouding: | 10001 (Typ.) | Interface: | LVDS met twee kanalen (2 pixels/klok) |
| Reactietijd: | 14ms (aan/uit, Typ.) | Achtergrondverlichting: | 50,000 uur |
| Oppervlaktebehandeling: | AG/AR/AF coatings (keuzebaar) | Aanraaktechnologie: | PCAP (CTP) Optioneel |
| Dekselglas: | Gorillaglas/gehard glas/PMMA (aanpassing) | Aanrakingspunten: | 10 punten Multi-touch |
| Touch Interface: | I²C/USB/RS232 (Configureerbaar) | IC Opties: | EETI, ILITEK, Cypress, Goodix |
| Aanpassing: | Zeefdruk, Logo, Uitsparingen | Naleving: | REACH- en RoHS-conform |
| Markeren: | TFT-LCD-scherm met RGB-strookresolutie,TFT-LCD-scherm met leesbaar zonlicht,TFT-LCD-scherm |
||
1000Nit 27" TFT-LCD dat door zonlicht kan worden gelezen - Aanpasbare industriële displayoplossing
SFTO2700SM-7322AN van Saef Technology is een hoge helderheid 27 inch TFT LCD ontworpen voor uitdagende omgevingen.en 178° breed zichtHet biedt een uitzonderlijk zicht in direct zonlicht, ideaal voor buitenkiosken, industriële HMI's en medische apparatuur in Europa en Noord-Amerika.
✅ Ultra-HD-helderheid: 1920x1080 FHD-resolutie met 16,7M kleuren zorgt voor scherpe afbeeldingen.
✅ Robuuste betrouwbaarheid: werkt bij -20°C~60°C extremen (opslag) en weerstaat thermische schokken (24 cycli getest).
✅ Energie-efficiënt: Ondanks de 1000 nit-uitgang verbruikt u slechts 5,3 W max.
✅ Levensduur: 50.000 uur LED-achterlicht (50% helderheidsbehoud).
Op uw behoeften afgestemd
We bieden end-to-end aanpassing voor OEM / ODM-partners:
Panelwijzigingen: Verander de grootte van het scherm (niet-standaard afmetingen ondersteund).
Interfaceflexibiliteit: LVDS, eDP, HDMI-conversies.
Firmware integratie: Custom OSD, gamma aanpassing, power sequencing.
Rapid Prototyping: 4 weken voor monsters.
Ideaal voor gespecialiseerde toepassingen: luchtvaartmonitors, militaire voertuigen, medische schermen met hoge helderheid.
Aanpassing aanvragen
Contactsales2@saef.com.cnvoor IP65-verzegelde versies, capacitieve touch-opties of aangepaste bezelontwerpen.
Specificaties
| Artikel 2 | Eenheid | Specificatie |
| Schermdiagonale | mm | 27.0 |
| Actief gebied | mm | 597.888 ((H) x 336.312 ((V) |
| Pixels H x V | - | 1920 ((x3) x 1080 |
| Pixels Pitch | Ik heb het gedaan. | 31.14 ((per één triade) x31.14 |
| Pixel-arrangement | - | RGB Verticale streep |
| Afbeeldingsmodus | - | Normaal zwart |
| Reactietijd | Msec | 14 ms (typisch aan/uit) |
| Gewicht | Gelijksoortige | TBD |
| Elektrische interface | - | Dual-channel LVDS, 8 bits RGB-gegevensinvoer |
| Ondersteunende kleur | - | 16.7M kleuren |
| Oppervlaktebehandeling | - | Anti-glare, 3H |
| Werktemperatuur | °C |
0 tot +50 |
| Bergingstemperatuur | °C | -20 tot +60 |
Externe afmetingen
![]()
Interface pin definitie
| Pin nr. | Symbool | Beschrijving |
| 1 | RxO0- | Negatieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 2 | RxO0+ | Positieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 3 | RxO1- | Negatieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 4 | RxO1+ | Positieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 5 | RxO2- | Negatieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 6 | RxO2+ | Positieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 7 | BIST | BIST |
| 8 | RxOCLK- | Negatieve LVDS-differentiële klokinvoer (Odd-klok) |
| 9 | RxOCLK+ | Positieve LVDS-differentiële klokinvoer (Odd-klok) |
| 10 | RxO3- | Negatieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 11 | RxO3+ | Positieve LVDS-differentiële gegevensinvoer (odd-gegevens) |
| 12 | RxE0- | Negatieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 13 | RxE0+ | Positieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 14 | GND | Ground |
| 15 | RxE1- | Negatieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 16 | RxE1+ | Positieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 17 | GND | Ground |
| 18 | RxE2- | Negatieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 19 | RxE2+ | Positieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 20 | RxECLK- | Negatieve LVDS-differentiële klokinvoer (gelijke klok) |
| 21 | RxECLK+ | Negatieve LVDS-differentiële klokinvoer (gelijke klok) |
| 22 | RxE3- | Negatieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 23 | RxE3+ | Positieve LVDS-differentiële gegevensinvoer (gelijke gegevens) |
| 24 | GND | Ground |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | Geen verbinding. |
| 28 | VDD | Stroomvoorziening Inlaatspanning 5V |
| 29 | VDD | Stroomvoorziening Inlaatspanning 5V |
| 30 | VDD | Stroomvoorziening Inlaatspanning 5V |
Optische kenmerken
| Parameter | Voorwaarden | - Min. | Typus. | Max, ik ben er klaar voor. | Eenheid | |
|
Zienhoek (CR>10) |
horizontaal | θL | 89 | - |
graad |
|
| θR | 89 | - | ||||
| Verticaal | θT | 89 | - | |||
| θB | 89 | - | ||||
| Contrastverhouding | Centrum | 700 | 1000 | - | - | |
| Reactietijd | Tr+Td | - | 14 | 20 | ms | |
|
CF Kleurchromatiek (CIE1931) |
Rode x |
Typ. -0.03 |
0.646 |
Typ. +0.03 |
- | |
| Rood y | 0.341 | - | ||||
| Groene x | 0.327 | - | ||||
| Groen y | 0.612 | - | ||||
| Blauwe x | 0.143 | - | ||||
| Blauw y | 0.041 | - | ||||
| Witte x | 0.283 | - | ||||
| Witte y | 0.289 | - | ||||
| Centrum Lichtsterkte wit | Jaar van toepassing | 800 | 1000 | cd/m2 | ||

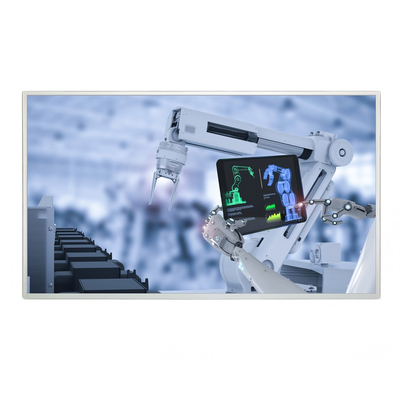

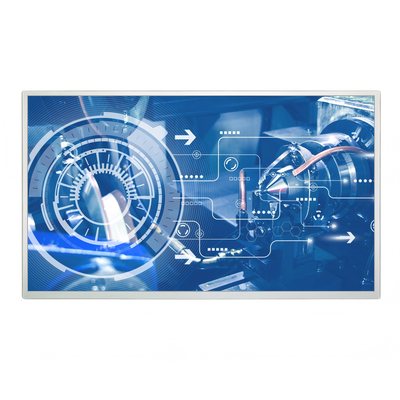

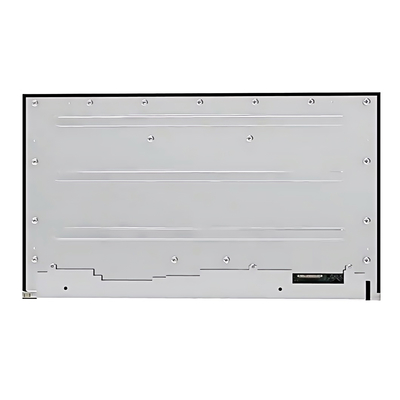

Productbeeld
![]()
![]()
