Productdetails:
|
| Modelnummer: | SFTO2700SM-7317AN | Schermgrootte: | 27 inch diagonaal |
|---|---|---|---|
| Resolutie: | 1920×1080 Pixels (RGB-streep) | Helderheid: | 350 Cd/m2 |
| Operatieve temperatuur.: | 0°C aan +50°C | Contrastverhouding: | 10001 (Typ.) |
| Interface: | LVDS met twee kanalen (2 pixels/klok) | Reactietijd: | 14ms (aan/uit, Typ.) |
| Achtergrondverlichting: | 30,000 uur | Oppervlaktebehandeling: | Anti-glare, 3H hardheid |
| Stroominvoer: | 5V±10% (Max 5.5V) | Naleving: | REACH- en RoHS-conform |
| Markeren: | 350 cd/m2 Industriële TFT LCD,Dual LVDS Industriële TFT LCD,27" Industriële TFT LCD |
||
Industriële 27-inch display voor controlekamers
De SFTO2700SM-7317AN combineert Full-HD-resolutie met industriële robuustheid voor controlekamers, medische technologie en automatiseringssystemen. Met 350 cd/m² helderheid en een kijkhoek van 89° biedt het een heldere visualisatie, zelfs onder veeleisende lichtomstandigheden.
Belangrijkste voordelen voor ingenieurs
✅ Industriële betrouwbaarheid
Werking bij 0°C tot 50°C (opslag -20°C~60°C)
Dual-LVDS-interface met 74,25 MHz klokfrequentie
3H krasbestendig anti-reflectie oppervlak
✅ Optische excellentie
1000:1 contrastverhouding voor scherpe grijswaardenweergave
14ms reactietijd (zwart-wit overgang)
Kleurcoördinaten volgens CIE1931 (witpunt x=0.283/y=0.289)
✅ Eenvoudige integratie
Vergrendelbare JAE FI-X30HL-connector
DE-only Timing Mode (geen HSYNC/VSYNC nodig)
VESA-compatibele bevestigingspunten
Gecertificeerde robuustheid
72 uur hogetemperatuurtest @60°C
24 cycli thermische schok (-20°C↔60°C)
ESD-bescherming: ±8kV (contact) volgens IEC 61000-4-2
Procesbesturingstechniek: SCADA-systemen, controlekamerdisplays
Medische apparatuur: OP-monitoren, diagnoseconsoles
Laboratoriumautomatisering: microscoopmonitoren, analyseapparatuur
Digital Signage: industriële infotainment-systemen
ISO-certificaten: 9001:2015 (kwaliteit), 14001:2015 (milieu)
EMV: EN 55032:2015 conform
Garantie: 2 jaar op functionele defecten
Leveringsomvang: ESD-beschermingsverpakking, montage tekeningen (DXF)
Vraag om maatwerk
Neem contact op met sales2@saef.com.cn voor IP65 afgedichte versies, capacitieve touch-opties of aangepaste bezel-ontwerpen.
Specificaties
| Items | Eenheid | Specificatie |
| Schermdiagonaal | mm | 27.0” |
| Actief gebied | mm | 597.888(H) x 336.312(V) |
| Pixels H x V | - | 1920(x3) x 1080 |
| Pixel Pitch | um | 31.14 (per één triad) x31.14 |
| Pixelindeling | - | R.G.B. Verticale Streep |
| Weergavemodus | - | Normaal Zwart |
| Reactietijd | Msec | 14ms (typ., aan/uit) |
| Gewicht | Gram | TBD |
| Elektrische interface | - | Dual channel LVDS, 8 bits RGB data-ingang |
| Ondersteunde kleur | - | 16.7M kleuren |
| Oppervlaktebehandeling | - | Anti-glare, 3H |
| Bedrijfstemperatuur | ℃ |
0 tot +50 |
| Opslagtemperatuur | ℃ | -20 tot +60 |
Externe afmetingen
![]()
Interface Pin Definitie
| Pin Nr. | Symbool | Beschrijving |
| 1 | RxO0- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 2 | RxO0+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 3 | RxO1- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 4 | RxO1+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 5 | RxO2- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 6 | RxO2+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 7 | BIST | BIST |
| 8 | RxOCLK- | Negatieve LVDS differentiële klokingang (Oneven klok) |
| 9 | RxOCLK+ | Positieve LVDS differentiële klokingang (Oneven klok) |
| 10 | RxO3- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 11 | RxO3+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 12 | RxE0- | Negatieve LVDS differentiële data-ingang (Even data) |
| 13 | RxE0+ | Positieve LVDS differentiële data-ingang (Even data) |
| 14 | GND | Aarde |
| 15 | RxE1- | Negatieve LVDS differentiële data-ingang (Even data) |
| 16 | RxE1+ | Positieve LVDS differentiële data-ingang (Even data) |
| 17 | GND | Aarde |
| 18 | RxE2- | Negatieve LVDS differentiële data-ingang (Even data) |
| 19 | RxE2+ | Positieve LVDS differentiële data-ingang (Even data) |
| 20 | RxECLK- | Negatieve LVDS differentiële klokingang (Even klok) |
| 21 | RxECLK+ | Negatieve LVDS differentiële klokingang (Even klok) |
| 22 | RxE3- | Negatieve LVDS differentiële data-ingang (Even data) |
| 23 | RxE3+ | Positieve LVDS differentiële data-ingang (Even data) |
| 24 | GND | Aarde |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | Geen verbinding |
| 28 | VDD | Voedingsspanning 5V |
| 29 | VDD | Voedingsspanning 5V |
| 30 | VDD | Voedingsspanning 5V |
Optische kenmerken
| Parameter | Condities | Min. | Typ. | Max. | Eenheid | |
|
Kijkhoek (CR>10) |
Horizontaal | θL | 89 | - |
graad |
|
| θR | 89 | - | ||||
| Verticaal | θT | 89 | - | |||
| θB | 89 | - | ||||
| Contrastverhouding | Midden | 700 | 1000 | - | - | |
| Reactietijd | Tr+Td | - | 14 | 20 | ms | |
|
CF Kleur Chromaticiteit (CIE1931) |
Rood x |
Typ. -0.03 |
0.646 |
Typ. +0.03 |
- | |
| Rood y | 0.341 | - | ||||
| Groen x | 0.327 | - | ||||
| Groen y | 0.612 | - | ||||
| Blauw x | 0.143 | - | ||||
| Blauw y | 0.041 | - | ||||
| Wit x | 0.283 | - | ||||
| Wit y | 0.289 | - | ||||
| Centrale Luminantie van wit | YLI | 300 | 350 | cd/m2 | ||
Achtergrondverlichting Kenmerken
| Parameter | Symbool | Waarde | Eenheid | ||
| Min. | Typ. | Max. | |||
| Lichtbalk ingangsspanning | VLED | 51 | 54 | 57 | V |
| Lichtbalk ingangsstroom | ILED | - | 480 | - | mA |
| LED Levensduur | LBL | 20000 | 30000 | - | Uren |

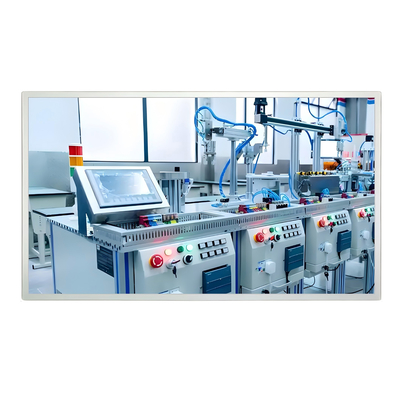

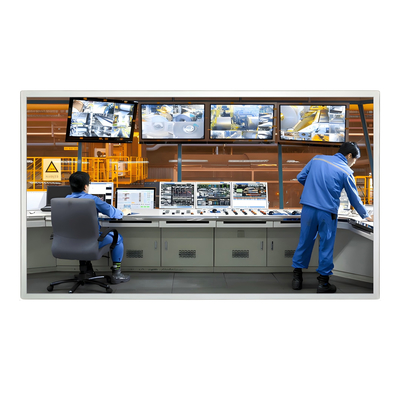

Productafbeelding
![]()
![]()
