Productdetails:
|
| Modelnummer: | SFTO2700SM-7317AN | Schermgrootte: | 27 inch diagonaal |
|---|---|---|---|
| Resolutie: | 1920×1080 Pixels (RGB-streep) | Helderheid: | 350 Cd/m2 |
| Opbergtemperatuur: | -20°C tot +60°C | Operatieve temperatuur.: | 0°C aan +50°C |
| Contrastverhouding: | 10001 (Typ.) | Interface: | LVDS met twee kanalen (2 pixels/klok) |
| Reactietijd: | 14ms (aan/uit, Typ.) | Achtergrondverlichting: | 30,000 uur |
| Oppervlaktebehandeling: | AG/AR/AF coatings (keuzebaar) | Aanraaktechnologie: | PCAP (CTP) Optioneel |
| Dekselglas: | Gorillaglas/gehard glas/PMMA (aanpassing) | Aanrakingspunten: | 10 punten Multi-touch |
| Touch Interface: | I²C/USB/RS232 (Configureerbaar) | IC Opties: | EETI, ILITEK, Cypress, Goodix |
| Aanpassing: | Zeefdruk, Logo, Uitsparingen | Naleving: | REACH- en RoHS-conform |
| Markeren: | Multi-Touch Industriële TFT LCD,27 Industriële TFT LCD,Handschoen-touch Industriële TFT LCD |
||
De SFTO2700SM-7317AN herdefinieert industriële visualisatie met geïntegreerde Projected Capacitive (PCAP) aanraaktechnologie. Door een 27" FHD TFT LCD (350 cd/m²) te combineren met handschoencompatibele aanraakgevoeligheid, is het ontworpen voor medische interfaces, fabrieksautomatisering en transportsystemen.
Belangrijkste aanpassingsopties
✅ Robuuste aanraakoplossingen
Glasopties: Chemisch gehard Gorilla Glass® (Medisch), Gehard glas (Industrieel), PMMA (Kostenbewust)
Coatings: Anti-reflectie (AG) voor leesbaarheid in zonlicht, Anti-reflectie (AR) voor medische beeldvorming, Anti-vingerafdruk (AF) voor kiosken
Randafwerkingen: Gepolijste, afgeschuinde of 2.5D gebogen randen
✅ Geavanceerde aanraakintegratie
Sensorconfiguraties: Glassensoren (hoge duurzaamheid), Filmsensoren (lichtgewicht), Film+Film (flexibele montage)
Controller IC's: EETI voor medische EMC, Cypress voor automotive (-40°C), Goodix voor multi-touch gebaren
Interfaces: I²C (embedded systemen), USB (plug-and-play), RS232 (legacy apparatuur)
✅ Industriële betrouwbaarheid
Werking bij 0°C~50°C met condensatiebestendigheid
24-cycli thermische schoktest (-20°C↔60°C)
IP65 frontafdichting in combinatie met aanraakscherm
Certificeringen
EN 60601-1 (Medisch), ISO 16750 (Automotive)
REACH SVHC-conform, RoHS 3
EMC: EN 55032 Klasse B
Aanpassing aanvragen
Neem contact op met sales2@saef.com.cn voor IP65 afgedichte versies, capacitieve aanraakopties of aangepaste bezelontwerpen.
Specificaties
| Items | Eenheid | Specificatie |
| Schermdiagonaal | mm | 27,0” |
| Actief gebied | mm | 597,888(H) x 336,312(V) |
| Pixels H x V | - | 1920(x3) x 1080 |
| Pixel Pitch | um | 31,14 (per triade) x31,14 |
| Pixelindeling | - | R.G.B. Verticale streep |
| Weergavemodus | - | Normaal zwart |
| Reactietijd | Msec | 14ms (typ., aan/uit) |
| Gewicht | Gram | TBD |
| Elektrische interface | - | Dubbelkanaals LVDS, 8 bits RGB-data-ingang |
| Ondersteunde kleur | - | 16,7M kleuren |
| Oppervlaktebehandeling | - | Anti-reflectie, 3H |
| Bedrijfstemperatuur | ℃ |
0 tot +50 |
| Opslagtemperatuur | ℃ | -20 tot +60 |
Externe afmetingen
![]()
Pin Definitie Interface
| Pin nr. | Symbool | Beschrijving |
| 1 | RxO0- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 2 | RxO0+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 3 | RxO1- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 4 | RxO1+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 5 | RxO2- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 6 | RxO2+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 7 | BIST | BIST |
| 8 | RxOCLK- | Negatieve LVDS differentiële klokingang (Oneven klok) |
| 9 | RxOCLK+ | Positieve LVDS differentiële klokingang (Oneven klok) |
| 10 | RxO3- | Negatieve LVDS differentiële data-ingang (Oneven data) |
| 11 | RxO3+ | Positieve LVDS differentiële data-ingang (Oneven data) |
| 12 | RxE0- | Negatieve LVDS differentiële data-ingang (Even data) |
| 13 | RxE0+ | Positieve LVDS differentiële data-ingang (Even data) |
| 14 | GND | Aarde |
| 15 | RxE1- | Negatieve LVDS differentiële data-ingang (Even data) |
| 16 | RxE1+ | Positieve LVDS differentiële data-ingang (Even data) |
| 17 | GND | Aarde |
| 18 | RxE2- | Negatieve LVDS differentiële data-ingang (Even data) |
| 19 | RxE2+ | Positieve LVDS differentiële data-ingang (Even data) |
| 20 | RxECLK- | Negatieve LVDS differentiële klokingang (Even klok) |
| 21 | RxECLK+ | Negatieve LVDS differentiële klokingang (Even klok) |
| 22 | RxE3- | Negatieve LVDS differentiële data-ingang (Even data) |
| 23 | RxE3+ | Positieve LVDS differentiële data-ingang (Even data) |
| 24 | GND | Aarde |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | Geen verbinding |
| 28 | VDD | Voedingsspanning 5V |
| 29 | VDD | Voedingsspanning 5V |
| 30 | VDD | Voedingsspanning 5V |
Optische kenmerken
| Parameter | Voorwaarden | Min. | Typ. | Max. | Eenheid | |
|
Kijkhoek (CR>10) |
Horizontaal | θL | 89 | - |
graad |
|
| θR | 89 | - | ||||
| Verticaal | θT | 89 | - | |||
| θB | 89 | - | ||||
| Contrastverhouding | Midden | 700 | 1000 | - | - | |
| Reactietijd | Tr+Td | - | 14 | 20 | ms | |
|
CF Kleurchromaticiteit (CIE1931) |
Rood x |
Typ. -0,03 |
0,646 |
Typ. +0,03 |
- | |
| Rood y | 0,341 | - | ||||
| Groen x | 0,327 | - | ||||
| Groen y | 0,612 | - | ||||
| Blauw x | 0,143 | - | ||||
| Blauw y | 0,041 | - | ||||
| Wit x | 0,283 | - | ||||
| Wit y | 0,289 | - | ||||
| Centrale helderheid van wit | YLI | 300 | 350 | cd/m2 | ||
Achtergrondverlichting kenmerken
| Parameter | Symbool | Waarde | Eenheid | ||
| Min. | Typ. | Max. | |||
| Lichtbalk ingangsspanning | VLED | 51 | 54 | 57 | V |
| Lichtbalk ingangsstroom | ILED | - | 480 | - | mA |
| LED Levensduur | LBL | 20000 | 30000 | - | Uren |

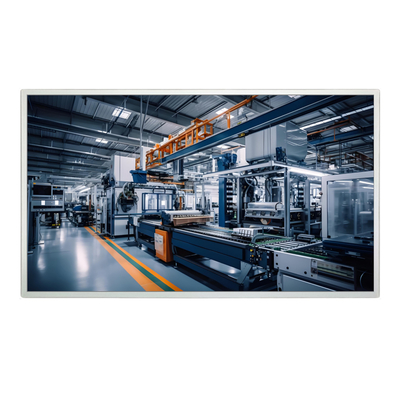

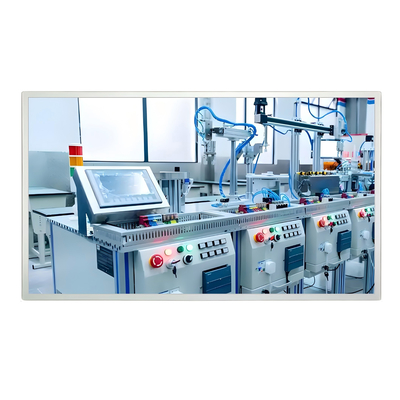

Productafbeelding
![]()
![]()
