Productdetails:
|
Producten: | 12.1 inch Industrial TFT Display | Resolutie: | 1280 RGB x 800 |
---|---|---|---|
Oppervlaktehelderheid: | 450 cd/m2 ((nits) | Interface: | LVDS |
Pinnummer: | 30 pin's | Zichtrichting: | IPS, Alle kijkhoeken (85/85/85/85) |
Lijst Dim.: | 278.0(H) x184.0(V) ×6.76(T) (mm) | Actief gebied: | 262.656 ((H) x164.16 ((V) (mm) |
aanraakscherm: | CTP Facultatief | Oppervlaktebehandeling: | Harde coating ((3H) |
Kleuren weergeven: | 16.7 M | Verbinding: | ZIF |
Operatieve temp.: | -20°C tot +70°C | Opbergtemperatuur: | -30°C tot +80°C |
Certificaat: | ISO9001:2015 / ISO1400:2015 | Naleving: | REACH- en RoHS-conform |
Markeren: | vertoning van 12,1 duim de medische TFT,Medisch TFT-display 450 Nits |

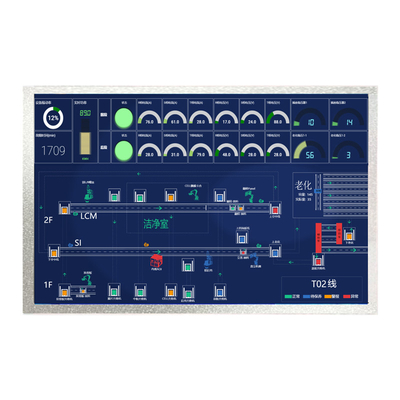

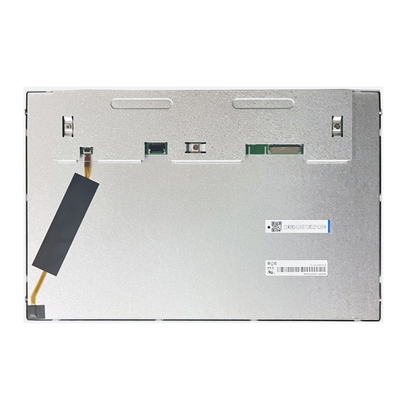

12.1 inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits Voor HMI Product Inleiding
GV121WXM-N80 Industrial TFT display is een 12,1 inch IPS type full viewing angles scherm met een resolutie van 1280x800 pixels.dit TFT-LCD-scherm GV121WXM-N80 werkt op 3.9V (maximale waarde), Vdd is van 3,0V tot 3,6V.
BOE GV121WXM-N80 is ontworpen met capacitieve touch panel, single touch en multi-touch optionele.De TFT touch LCD GV121WXM-N80 is van goede kwaliteitAls industriële display wordt dit product veel gebruikt in industriële en medische toepassingen, POS-terminals, HMI's, huisautomatisering, beveiligingssysteem, enz.
Product: | 12.1 inch industriële TFT-scherm |
Resolutie: | 1280 RGB X 800 |
Oppervlakteverlichting: | 450 Cd/m2 ((nits) |
Interface: | LVDS |
Zichtrichting: | IPS, alle kijkhoeken (85/85/85/85) |
Pinnummer: | 30 pin's |
Lijst Dim.: | 278.0(H) x184.0(V) ×6.76(T) (mm) |
Actief gebied: | 262.656 ((H) x164.16 ((V) (mm) |
Oppervlaktebehandeling: | Harde coating ((3H) |
Verbinding: | ZIF |
Touchscreen: | CTP Facultatief |
Afbeeldingskleuren: | 16.7 M |
Werktemperatuur | -20°C tot +70°C |
Opbergtemp.: | -30°C tot +80°C |
Naleving: | REACH- en RoHS-conform |
Certificaat: | ISO9001:2015 / ISO1400:2015 |
12.1 inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits Voor HMI Product Drawing
Elektrische specificaties van de LCD-module
Absolute maximale ratings
Opmerking 1: Temperatuur- en relatieve luchtvochtigheidsbereik worden in de onderstaande figuur weergegeven.
Energieverbruik van achterlicht
Optische kenmerken
12.1 inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits Voor HMIProduct Ide magie
Fabrieksfaciliteiten en certificaten

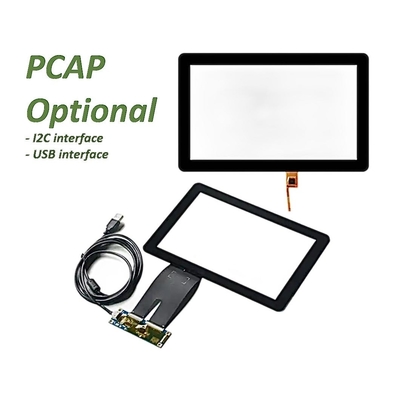

Projecteerde capacitieve (PCAP) touchscreen
Projected Capacitive (PCAP) touchtechnologie biedt een snelle en gevoelige respons en professionele betrouwbaarheid gecombineerd.Het geprojecteerde capacitieve aanraakscherm van Saef Technology is ontworpen voor strenge industriëleWe kunnen ook PCAP touchscreens combineren met vloeibare kristallen displays (LCD's),een geïntegreerde ingebedde oplossing die de toeleveringsketen en assemblage helpt vereenvoudigen.
Dekselglas:
1Vorm: maat, vorm, randbehandeling, gaten en uitsnijdingen
2Kleur: zijdedruk, logo
3Glasmateriaal: gorillaglas, gehard glas, PMMA
4Behandeling: spiegel, AG, AR, AF
Sensor:
1Sensormateriaal: glas, film, film+film
2FPC: Vormontwerp facultatief
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix enzovoort
4Interface: I2C, USB, RS232
