Productdetails:
|
Producten: | 5 inch IPS TFT met CTP | Resolutie: | 720x1280 punten |
---|---|---|---|
Interface: | Mipi | Touchscreen: | Pkap |
Zichtrichting: | IPS Alle kijkhoeken | PCAP-structuur: | GFF |
LCD Controlemechanisme: | ST7703 | CTP-controller: | GT911 |
De Afmeting van het dekkingsglas: | Aanpasbaar | Pinnummer: | 30 pin's |
Verbinding: | ZIF FPC | Oppervlaktehelderheid: | 350 cd/m2 ((nits) |
LED-levensduur: | 40,000 uur | Naleving: | REACH- en RoHS-conform |
Markeren: | 5 inch TFT-display,GT911 capacitieve touchscreen,IPS Full View TFT-scherm |
5 inch capacitieve touchscreen TFT LCD Product Inleiding
Kenmerken
Artikel 1 | Specificatie | Eenheid |
Schermgrootte | 5.0 | Inch |
Aantal pixels | 720RGB ((H) x 1280 ((V) | Pixels |
Afbeeldingsgebied | 62.10(H) x110.40(V) | mm |
Pixel pitch | 0.0945 ((H) x0.0945 ((V) | mm |
Uitlegdimensie | 78.56x135.65x2.95 | mm |
Pixel-arrangement | RGB verticale strook | - Ja. |
Afbeeldingsmodus | Normaal zwart | - Ja. |
Zichtrichting (oog) | Alle | - Ja. |
Kleur weergeven | 262K | - Ja. |
Lichtsterkte ((cd/m2) | 350 | Niet |
Contrastverhouding | 800:1 | - Ja. |
Interface | MIPI | |
Achterlicht | LED-zijnlichttype | - Ja. |
LCM IC | ST7703 | |
CTP IC | GT911 | |
Operatietemperatuur | - 20 tot 70 | °C |
Bergingstemperatuur | -30 tot 80 | °C |
Ontwerp van de lijn
Interface pin definitie
PinNo. | Symbool | Functie |
1 | NC | NC |
2 | LEDK | LED-achterlicht ((Kathode) |
3 | NC | NC |
4 | LEDA | LED-achterlicht ((Anode) |
5 | NC | NC |
6 | GND | Ground |
7 | MIPI_D0N | MIPI DSI-differenciële gegevens |
8 | MIPI_D0P | MIPI DSI-differenciële gegevens |
9 | GND | Ground |
10 | MIPI D1N | MIPI DSI-differenciële gegevens |
11 | MIPI D1P | MIPI DSI-differenciële gegevens |
12 | GND | Ground |
13 | MIPI_CLN | MIPI DSI-differentiële klok |
14 | MIPI_CLP | MIPI DSI-differentiële klok |
15 | GND | Ground |
16 | MIPI D2N | MIPI DSI-differenciële gegevens |
17 | MIPI D2P | MIPI DSI-differenciële gegevens |
18 | GND | Ground |
19 | MIPI_D3N | MIPI DSI-differenciële gegevens |
20 | MIPI_D3P | MIPI DSI-differenciële gegevens |
21-22 | GND | Ground |
23 | NC | NC |
24 | GND | Ground |
25 | TE | Frame synchronisatie signaal |
26 | Reset | externe reset-invoer |
27 | IOVCC ((1.8V) | Stroomvoorziening 1,8 V |
28 | VDD ((2,8V) | Stroomvoorziening 2,8 V |
29-30 | GND | Ground |
Definitie van de CTP-pin
1 | RST | Touchscreen opnieuw instellen |
2 | SDA | Touchscreen-gegevenssignaal |
3 | SCL | Touchscreen kloksignaal |
4 | INT | Touchscreen onderbrekingssignaal |
5 | VDD ((2,8V) | Stroomvoorziening 2,8 V |
6 | GND | Ground |
Optische specificatie
Artikel 1 | Symbool | Voorwaarde | Min. | Type | Maximaal | Eenheid | |
Witte helderheid (midden) | Lv |
Θ=0 Normaal Bekijken Hoek IBL=40mA |
- Dat is... | 350 | - Dat is... | cd/m2 | |
Reactietijd | Tr+Tf | - Dat is... | 10 | 15 | ms | ||
Contrastverhouding | CR | 640 | 800 | - Dat is... | - Dat is... | ||
Kleur Chromaticiteit (CIE1931) |
wit | Wx | 0.283 | 0.303 | 0.323 | ||
Wy. | 0.303 | 0.323 | 0.343 | ||||
Zienhoek |
Hor |
L |
CR≥10 |
- Dat is... | 80 | - Dat is... | |
ΘR | - Dat is... | 80 | - Dat is... | ||||
Ver |
De | - Dat is... | 80 | - Dat is... | |||
Het | - Dat is... | 80 | - Dat is... | ||||
Uniformiteit van de helderheid | Gemiddeld | Θ=0 | 80 | 90 | - Dat is... | % | |
Kleurbereik | NTSC | Θ=0 | - Dat is... | 70 | - Dat is... | % | |
Optische zichtrichting | Alle |
TFT LCD-kenmerken
Artikel 1 | Symbool | - Min. | Typus. | Max, ik ben er klaar voor. | Eenheid |
Analoog voedingsspanning | VDD | 2.4 | 2.8 | 3.3 | V |
Digitale voedingsspanning | VDDI | 1.65 | 1.8 | 3.3 | |
Invoersignaal Spanning | HIV | 0.7VDDI | - | VDDI | V |
VIL | GND | - | 0.3VDDI | V |
Achterlichtkenmerken
Artikel 1 | Symbool | Min. | Type | Maximaal | Eenheid |
LED-stroom | IL | - | 30 | 40 | mA |
LED-spanning | VL | - | 16.8 | 19.2 | V |
Levensduur van de LED in bedrijf | Hrs. | - | 20000 | 40000 | Uur |

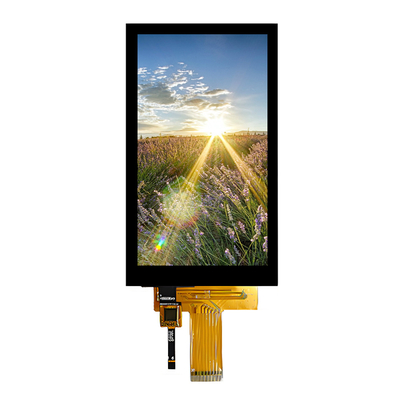

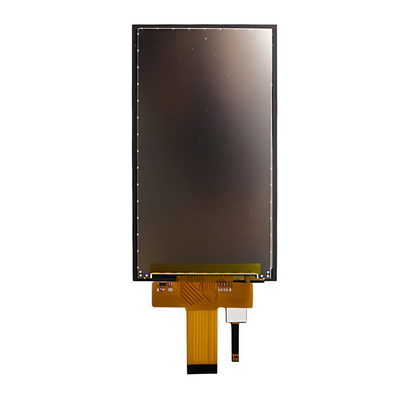

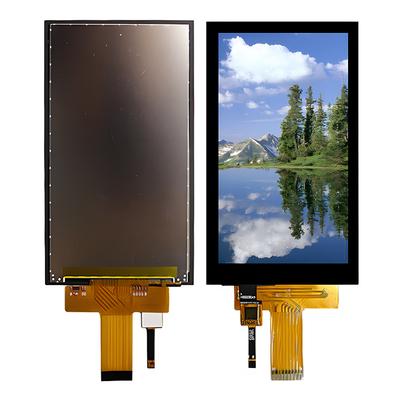

Productbeeld
Faciliteiten en certificaten
