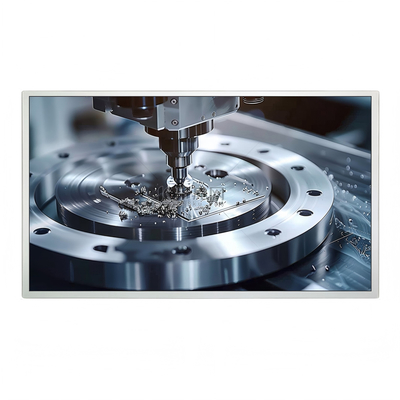

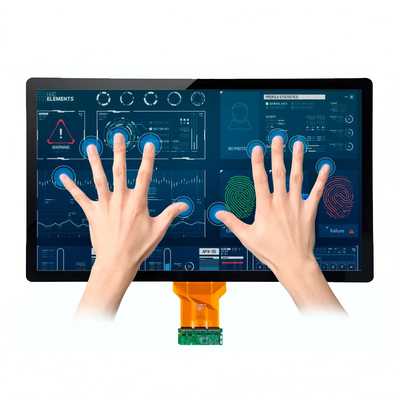

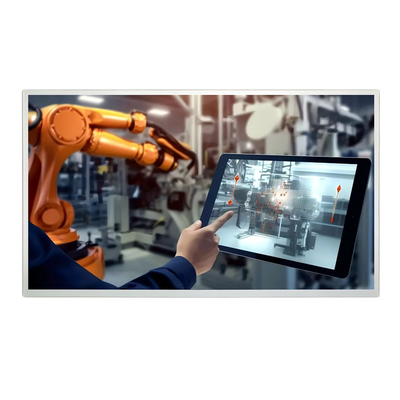

15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets

15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets
15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets 15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets 15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets 15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets

Grote Afbeelding :  15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets

Productdetails:
Plaats van herkomst: ShenZhen / China
Merknaam: SAEF
Certificering: ISO9001 / ISO14000
Modelnummer: SFTO1560JD-7328BN
Document: SFTO1560JD-7328BN.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 3 stuks
Prijs: The lowest market price guaranteed
Verpakking Details: Standaard exportpakket
Levertijd: 1-5 weken
Betalingscondities: PayPal, T/T, Western Union, Ali-Pay, WeChat Pay
Levering vermogen: 3000K stuks per maand

15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets

beschrijving
Schermgrootte: 15,6-inch diagonaal Type scherm: Industriële tftlcd module
Resolutie: 1920×1080 Pixels (RGB-streep) Opbergtemperatuur: -30°C tot +80°C
Operatieve temperatuur.: -35°C aan +85°C Helderheid: 500 cd/m2
Contrastverhouding: 1200:1 (normaal) Interface: 8-bits LVDS-invoer, I-PEX-connector
Oppervlaktebehandeling: AG/AR/AF coatings (keuzebaar) Aanraaktechnologie: Capacitatief aanraakpaneel
Dekselglas: Gorilla Glass/Gehard Glas/PMMA Aanrakingspunten: 10 punten Multi-touch
Touch Interface: I²C/USB/RS232 (Configureerbaar) IC Opties: EETI, ILITEK, Cypress, Goodix
Aanpassing: Zeefdruk, Logo, Uitsparingen Naleving: REACH- en RoHS-conform



Introducing the SFTO1560JD-7328BN – A Professional-Grade 15.6" FHD Industrial TFT Display for Demanding Environments

The SFTO1560JD-7328BN is a high-performance industrial TFT LCD module designed for robust applications in industrial, medical, aerospace, and marine environments. With a 15.6-inch diagonal active area and Full HD resolution (1920 x 1080), this display delivers exceptional clarity and reliability in extreme conditions.

Key Features:

  • Bright & Uniform Display: Achieve 500 cd/m² brightness (425 cd/m² minimum) with 80% typical luminance uniformity for clear visibility in bright or low-light environments.
  • Wide Operating Temperature Range: Function seamlessly from -30°C to +80°C, ideal for outdoor, industrial, and aerospace applications.
  • Durability & Reliability: Passes 8000+ hours of reliability tests (high/low temp, humidity, ESD) with 50,000-hour LED backlight lifespan (50% luminance retention).
  • Low Power Consumption: Efficient 9.55 W typical power usage (10.65 W max) ensures energy savings for extended operation.
  • Advanced Interface: Supports 8-bit LVDS input with a I-PEX 20455-040E-66 connector for easy integration into industrial systems.
  • RoHS Compliance: Environmentally friendly design meets global regulations for lead-free and hazardous substance-free manufacturing.

Technical Specifications:

  • Resolution: 1920 x 1080 (RGB vertical stripe arrangement)
  • Contrast Ratio: 1200:1 (typical) with 85° wide viewing angles (CR>10)
  • Color Gamut: 72% NTSC for vibrant and accurate color representation
  • Backlight: 40 LEDs (252 mA) with 50,000-hour lifespan
  • Mounting: 0.8T glass thickness for structural stability and anti-reflective coating (HC treatment)
  • Dimensions: 363.8 mm (W) x 215.9 mm (H) with a compact outline for space-constrained systems

Applications:

  • Industrial Human-Machine Interfaces (HMI)
  • Medical Diagnostic Equipment
  • Marine Navigation Systems
  • Aerospace Instrumentation
  • Defense Technology Interfaces

Why Choose SFTO1560JD-7328BN?

  • Designed for Harsh Conditions: From -30°C to +80°C, this display thrives in extreme temperatures, making it ideal for outdoor or industrial environments.
  • Energy Efficiency: Low power consumption aligns with green technology trends in Europe and North America.
  • Global Compliance: RoHS certification ensures compliance with EU and US environmental standards.
  • Long Lifespan: 50,000-hour LED backlight and 8000+ hours of reliability testing guarantee long-term performance.

Perfect for OEMs and System Integrators in Europe & USA:
The SFTO1560JD-7328BN is engineered to meet the demands of industrial automation, healthcare, and aerospace sectors. Its compact design, high brightness, and wide temperature tolerance make it a top choice for professionals requiring uncompromising reliability.

Contact Us Today for Bulk Orders or Customization!
At Saef Technology Limited, we provide end-to-end support for your industrial display needs. Based in China with global distribution, we ensure fast delivery and technical assistance for customers in North America and Europe.



Specifications



Parameter Specification Unit
Active Area 345.6(W) x 194.4(H) mm
Number Of Pixels 1920 x RGB x 1080 pixels
Pixel Pitch 0.18(W) x 0.18(H) mm
Pixel Arrangement RGB Vertical stripe
Display Mode Normally black
Display Colors 8bits colors
Surface Treatment HC
Contrast Ratio Typ. 1200 Min.1000
Viewing Angle(CR>10) Typ.85/85/85/85 deg.
Color Gamut 72% NTSC
Brightness 500typ 425min cd/m2
Brightness Uniformity 80% typ 75% min
Power Consumption Max.10.65W Typ. 9.55 W watt
Outline Dimension 363.8*215.9 mm
Weight Typ. 850g gram





External Dimensions



15.6" FHD Industrial TFT Display | 500 cd/m² | Wide Temp. Range | RoHS Compliant | For Europe & USA Markets 0





Interface Pin Definition



No.

Symbol

No.

Symbol

1

RE3P

Positive LVDS differential data input Channel E3(Even)

21

RO1N

Negative LVDS differential data i nput Channel O1(Odd)

2

RE3N

Negative LVDS differential data inpu t Channel E3(Even)

22

RO0P

Positive LVDS differential data in put Channel O0(Odd)

3

RECLKP

Positive LVDS differential clock inpu t (Even)

23

RO0N

Negative LVDS differential data i nput Channel O0(Odd)

4

RECLKN

Negative LVDS differential clock inp ut(Even)

24

GND

LCD Ground

5

RE2P

Positive LVDS differential data input Channel E2(Even)

25

NC

SDA for SAEF use, this pin shoul d be open

6

RE2N

Negative LVDS differential data inpu t Channel E2(Even)

26

NC

SCL for SAEF use, this pin shoul d be open

7

GND

LCD Ground

27

NC

MTP for SAEF use, this pin shoul d be open

8

RE1P

Positive LVDS differential data input Channel E1(Even)

28

LCD_VCC

LCD Power 3.3V

9

RE1N

Negative LVDS differential data inpu t Channel E1(Even)

29

LCD_VCC

LCD Power 3.3V

10

RE0P

Positive LVDS differential data input Channel E0(Even)

30

LCD_VCC

LCD Power 3.3V

11

RE0N

Negative LVDS differential data inpu t Channel E0(Even)

31

LED_PW

M

Backlight Adjust ,3.3V(3V~3.6V)

12

RO3P

Positive LVDS differential data input Channel O3(Odd)

32

LED_EN

Enable pin ,3.3V(3V~3.6V)

13

RO3N

Negative LVDS differential data inpu t Channel O3(Odd)

33

GND

Ground

14

GND

LCD Ground

34

STBYB

Deep standby mode setting pin.

15

ROCLKP

Positive LVDS differential clock inpu t (Odd)

35

RSTB

Device Reset for LCD driver IC, Low active

16

ROCLKN

Negative LVDS differential clock inp ut(Odd)

36

GND

Ground

17

GND

LCD Ground

37

BL_POW

ER

+12V Vi power supply

18

RO2P

Positive LVDS differential data input Channel O2(Odd)

38

BL_POW

ER

+12V Vi power supply

19

RO2N

Negative LVDS differential data inpu t Channel O2(Odd)

39

BL_POW

ER

+12V Vi power supply

20

RO1P

Positive LVDS differential data input Channel O1(Odd)

40

BL_POW

ER

+12V Vi power supply





Optical Characteristics



Item

Symbol

Condition

Min

Typ.

Max

Unit

luminance

Bp

θ=0°

425

500

--

cd/m2

L255 Uniformity

△Bp



75

80

--

%

Viewing Angle

θL

 Cr≥10

--

85

--

 deg



θR



--

85

--





ψT



--

85

--





ψB



--

85

--



Contrast Ratio

Cr

θ=0°  FF=0°

1000

1200



-

Color Coordinate of CIE1931

Wx

θ=0°

0.283

0.313

0.343

-



Wy



0.299

0.329

0.359



Color Gamut



NTSC

--

72

--

%

Gamma



25℃

2.0

2.2

2.4

%

Crosstalk



25℃

--

--

2

%





Backlight Characteristics



Parameter

Symbol

Values

Unit





Min.

Typ.

Max.



LED Supply Voltage

V LED

28

30

31

V

LED Supply Current

ILED

-

252

-

mA

Power Consumption

PLED

-

8.89

9.19

W

LED Quantity

QLED

-

40

-

EA

LED Life Time

TLED

40000

50000

-

Hrs





CTP Specification (optional)



Category Parameter Specification
General Structure Cover Glass + DITO Glass
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥85%
Operation Temperature -30℃ ~ +80℃, ≤85% RH
Storage Temperature -35℃ ~ +85℃, ≤85% RH
Electrical Interface IIC / USB / UART
Touch IC IL12511
Power Supply Voltage (VDD) 3.3V or 5V (Selectable)
Host Resistance (SDA/SCL) Configurable on Main-board
Environmental Operating Conditions Functional in fog/surface water
Surface Properties Surface Ink Anti-UV
Surface Treatment Anti-Glare (Haze: 10%)
LCD-TP Lamination OCA (Optically Clear Adhesive)
Compliance Material Standards RoHS & Halogen-Free Compliant
